LV-125A

LV-125A
Download PDF (Size 730 kb )

individual offer

Application

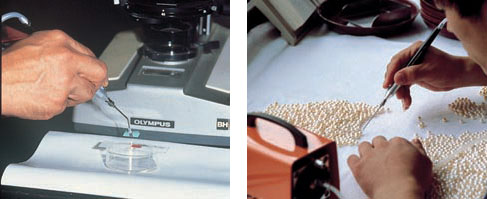

Most suitable for handling electronic parts such as ICs and LSIs.
Also precise micro parts such a s watches, chemicals and other small parts.

MH-100A is composed of:

  • Vacuum Pump Unit Linicon Model LV-125A
    including 1 pc. of Micro Cupla MC04PH
  • Tube 3 x 5 x 2000mm : 1 pc.
  • Tweezers (P-100): 1set
  • Needle 1 x 1.5 x 40 : 1 pc.
  • Pad 6 mm dia.: 1 pc.
  • Pad 4 mm dia.: 1 pc.
  • Optional available: Stand for tweezers

Attainable Vacuum 333. mbar
Rated Voltage 230 V
115 V
Power Consumption 15 W
14 W
Rated Frequency 50 Hz
50 Hz
Life Expectancy
Duty Cycle Continuous
Coil Insulation Class B or its equivalent E or its equivalent
Mounting Dimensions 135 x 146 mm
Gross Weight 1.5 kg

LV-125A
