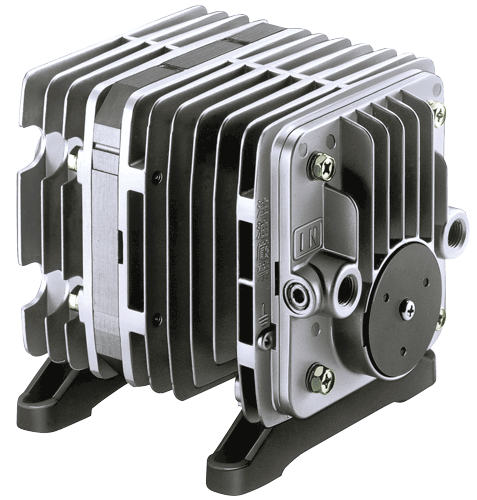

VP 0940

VP 0940


Click here to get your individual offer

Download PDF

(187.56 KB)

Specifications

Attainable Vacuum: -533 mbar
Free Air Displacement: 60 l/min
Rated Voltage: 230 V
120 V
Power Consumption: 95 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 10.000 h
Inlet: ISO Rc 1/4 (female threaded)
Outlet: ISO Rc 1/4 (female threaded)
Duty Cycle: Continuous
Coil Insulation Class: B or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 102 x 130 mm
Gross Weight: 4.55 kg
Leadwire Length: 300 mm

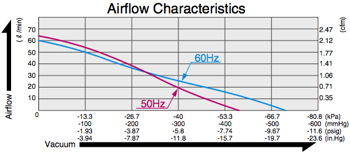

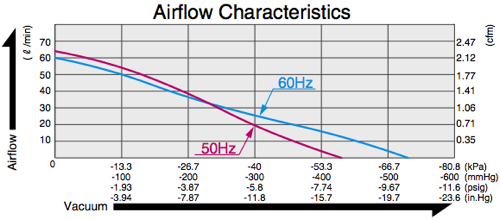

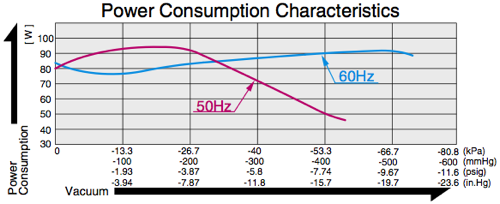

Airflow & Power Consumption
(click to enlarge)

VP 0940
VP 0940
VP 0940
Application Examples
VP 0940
VP 0940

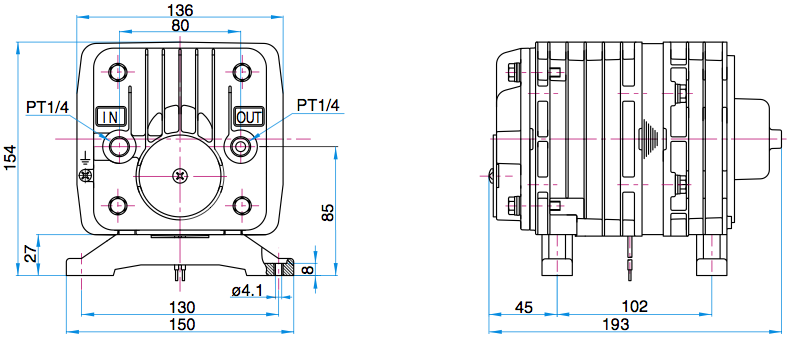

Sketch Drawing and Mounting Dimensions Diagram (mm)

VP 0940
