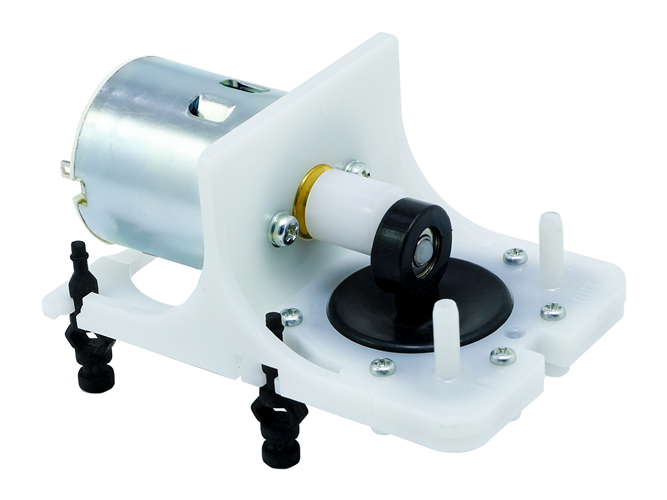

DP 0125

PDF à Télécharger

(194.49 KB)

Spécifications

Vide maximum: -333 mbar
Débit d´air nominal: 2.5 l/min
Pression maximum: 0.3 bar
Puissance consommée: 0.5 A
Tension nominale: 12 V
Type de courant: Continuous
Durée de vie: 200 h
Branchement: 3mm O.D. straight nipple
Classe d'isolation: E or its equivalent (JETL)
Dimension pour le montage (L x W): 32 x 32.5 mm
Poids brut: 0.08 kg

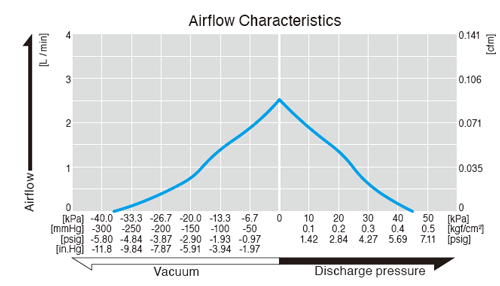

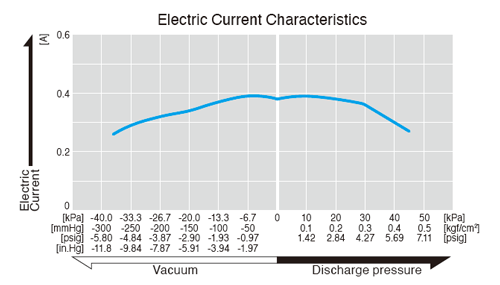

Airflow & Power Consumption
(click to enlarge)

Application Examples
DP 0125
DP 0125

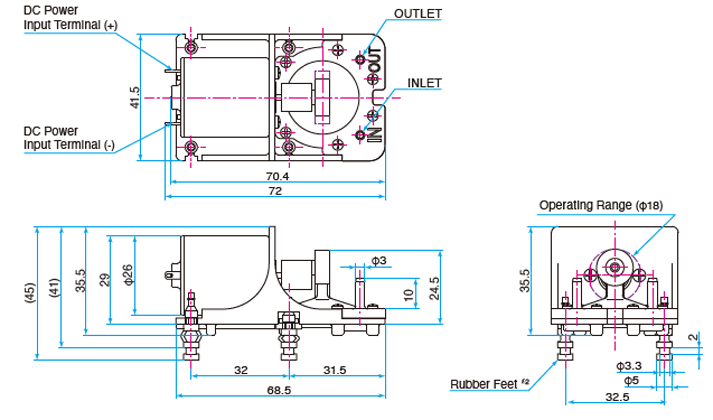

Sketch Drawing and Mounting Dimensions Diagram (mm)

DP 0125
