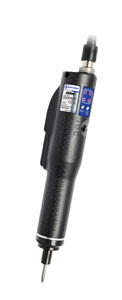

DLV04C10L_AY

Delvo Catalogue

(4.51 MB)

Download PDF

(3.64 MB)

Features of the Current Control Type:
Easy fastening setting by controller
Current Controlled Torque System suitable for screw fastening work
Low-voltage brushless motor
ESD (electrostatic discharge) protection structure
For both hand-held / automatic machines
Controller has built in counting function - Preventing human errors

Specifications

Starting Method: Lever Start
Free Speed: 600 - 1000 min -1
Torque: 0.05 - 0.4 Nm
Screw Size (Machine Screw): 1.1 - 2.5 mm
Screw Size (Tapping Screw): 1.2 - 3.0 mm
Mass (Weight): 370 g
Voltage: 24 V DC
Power Consumption: Approx. 30 W (rotating)

Optional Accessories

Bit Type (mm)
DLV04C10L_AY

Torque Diagrams (for reference)

DLV04C10L_AY
Controller
DLV04C10L_AY

DCC0101x-AZ
Input Voltage: 100-240 V AC, 50/60 Hz
Operation Channel Function: Torque and speed setting in 4-channel memory
Can switch to any operation channel
Count Function: Tracks screws fastened
Workpiece detector can be incorporated
External Start up Control Function: Start up control can be enabled by external input signal
Input Signal Method: Photocoupler input
(24 V DC drive (5 mA/1 input), respond to PNP output)
Output Signal Method: Photocoupler output
(30 V DC or less, 30 mA/1 output or less, PNP output method)
Service Power Source: 24 V DC (Maximum capacity 200 mA)
Power consumption: When on standby: 20 W
During electric screwdriver rotation (rated): 30 W
Mass: 1,1 kg
Power Cord (Optional): DLW9220 / DLW9240 / DLW9250
