ARA-100A

Download PDF

(926.77 KB)

Download Instruction Manual

(1.40 MB)

The versatile drilling machine with top-class power

Specifications

Power Source (Single Phase): 220 V AC 50/60 Hz
Rated Power Consumption: 1800 W
Magnet Power Consumption: 80 W
Hole Diameter: 17.5 to 100 mm
Plate Thickness: 13 to 75 mm
No Load Speed: 100-210/330-660 min-1
Magnet Holding Power: 17 kN
Magnet Dimensions: 110 x 220 mm
Mass (Weight): 30 kg
Standard Accessories:

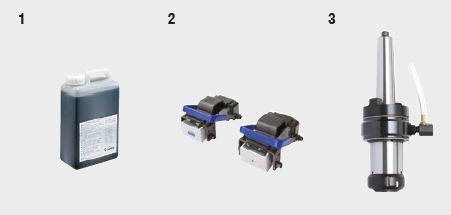

Optional Parts

Application Examples
