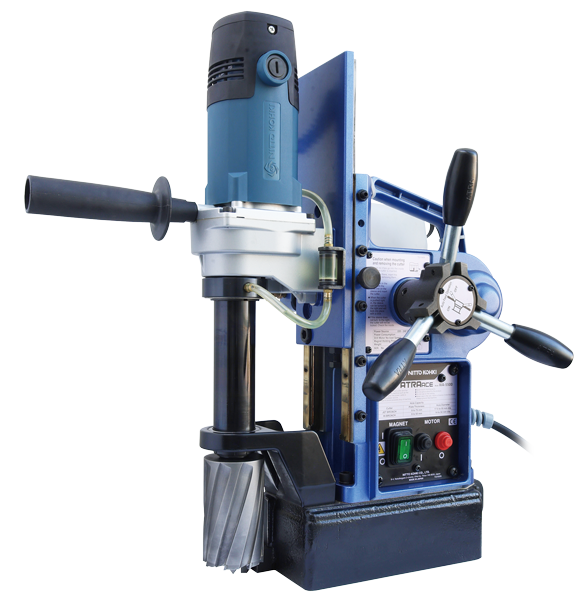

WA-5500

Cliquer ici pour avoir une offre individuelle

Download PDF

(794.77 KB)

Download Instruction Manual

(4.81 MB)

High-performance mechanism & high-tech components

Spécifications

Power Source (Single Phase):	220-240 V AC 50/60Hz
Rated Power Consumption:	1040 W
Magnet Power Consumption:	70 W
Hole Diameter:	14 to 55 mm
Plate Thickness:	9 to 75 mm
No Load Speed:	520 min-1
Magnet Holding Power:	9.800 N
Magnet Dimensions:	101 x 203 mm
Mass (Weight):	22 kg
Standard Accessories:

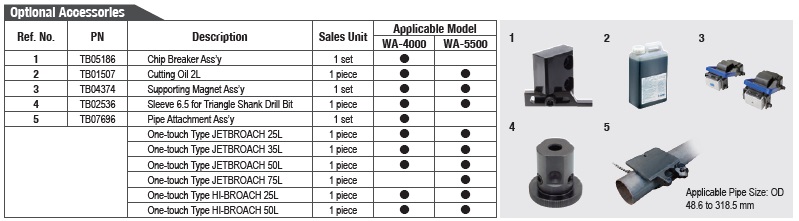

Optional Parts

Application Examples
