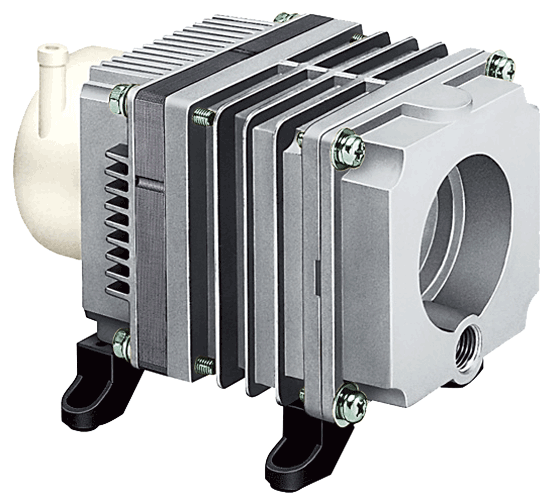

AC 0201A

Download PDF

Specifications

Rated Pressure: 0.1 bar
Rated Airflow: 20 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.2 bar
Power Consumption: 19 W
19 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 6.000 h
Outlet: ISO Rc 1/4 (female threaded)
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and A for UL-1450
Mounting Dimensions (L x W): 73 x 88 mm
Gross Weight: 1.5 kg
Leadwire Length: 200 mm

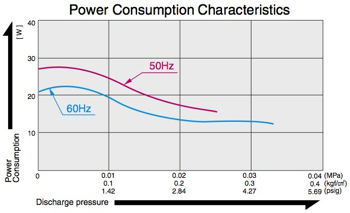

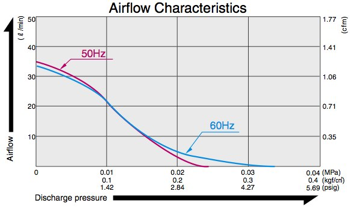

Airflow & Power Consumption
(click to enlarge)

Application Examples

Seat Lifter
Bed Sore Preventer

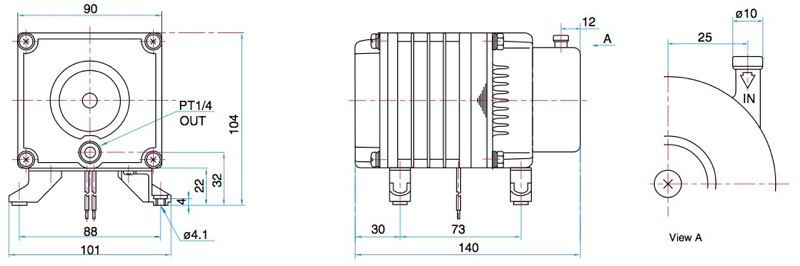

Sketch Drawing and Mounting Dimensions Diagram (mm)

AC 0201A
