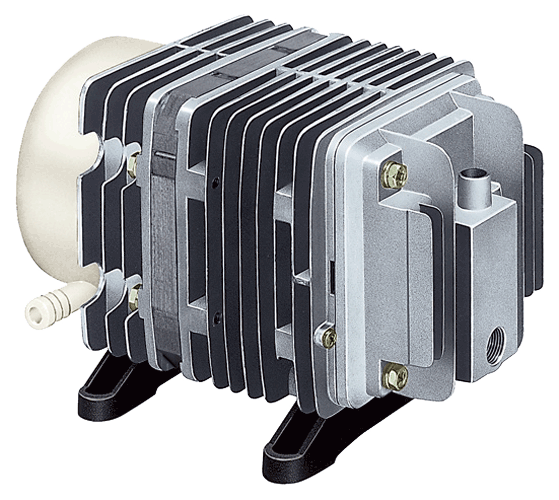

AC 0901

Download PDF

(114.49 KB)

Specifications

Rated Pressure: 0.1 bar
Rated Airflow: 80 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.4 bar
Power Consumption: 99 W
88 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 10.000 h
Outlet: ISO Rc 3/8 (female threaded)
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 102 x 130 mm
Gross Weight: 4.9 kg
Leadwire Length: 300 mm

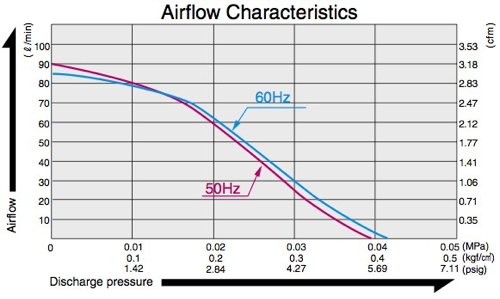

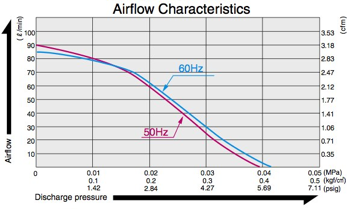

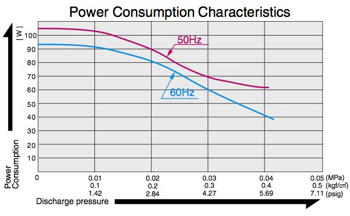

Airflow & Power Consumption
(click to enlarge)

Application Examples

Pneumatic Jack
Gas Burner Booster

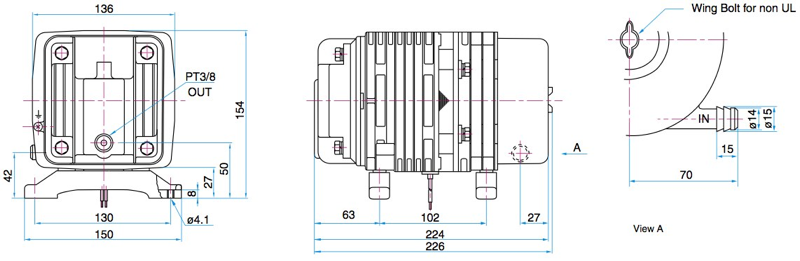

Sketch Drawing and Mounting Dimensions Diagram (mm)

AC 0901
