LV-125A

Download PDF

(202.92 KB)

Application

Most suitable for handling electronic parts such as ICs and LSIs.
Also precise micro parts such a s watches, chemicals and other small parts.

MH-100A is composed of:

  • Vacuum Pump Unit Linicin Model LV-125A
    including 1 pc. of Micro Cupla MC04PH
  • Tube 3 x 5 x 2000mm : 1 pc.
  • Tweezer (P-100): 1set
  • Stand: 1 pc.
  • Needle 1 x 1.5 x 40 : 1 pc.
  • Pad 6 mm dia.: 1 pc.
  • Pad 4 mm dia.: 1 pc.

Specifications

Attainable Vacuum: -333 mbar
Rated Voltage: 230 V
115 V
Power Consumption: 15 W
14 W
Rated Frequency: 50 Hz
50 Hz
Life Expectancy:
Duty Cycle: Continuous
Coil Insulation Class: B or its equivalent E or its equivalent
Mounting Dimensions (L x W): 135 x 146 mm
Gross Weight: 1.5 kg

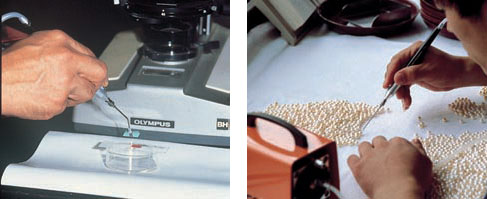

Application Examples

LV-125A
