VC 0100 (Blower)

Download PDF

(201.86 KB)

Specifications

Attainable Vacuum:	n/a
Rated Airflow:	6 l/min
Rated Voltage:	230 V 120 V
Maximum Pressure:	0.16 bar
Rated Pressure:	0.04 bar
Power Consumption:	6 W 6 W
Rated Frequency:	50 Hz 60 Hz
Life Expectancy:	10.000 h
Working Pressure Range:	0 to 0.16 bar
Outlet (Inlet):	6mm O.D. hose nipple
Duty Cycle:	Continuous
Coil Insulation Class:	E for 230V or its equivalent (JETL) A for 120V or its equivalent (JETL)
Mounting Dimensions (L x W):	70 x 72 mm
Gross Weight:	0.45 kg
Leadwire Length:	300 mm

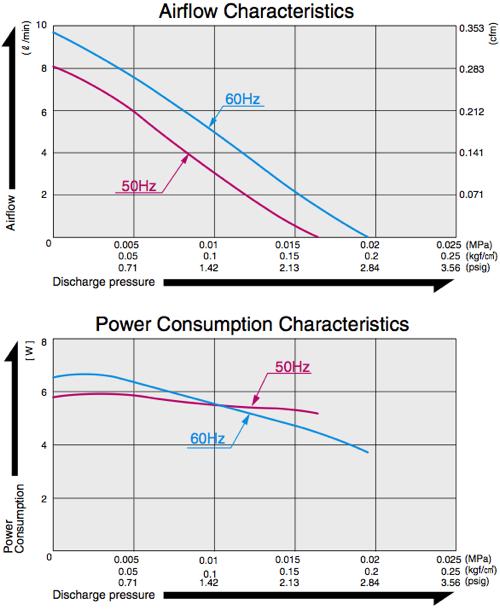

Airflow & Power Consumption
(click to enlarge)

Application Examples

Sketch Drawing and Mounting Dimensions Diagram (mm)
