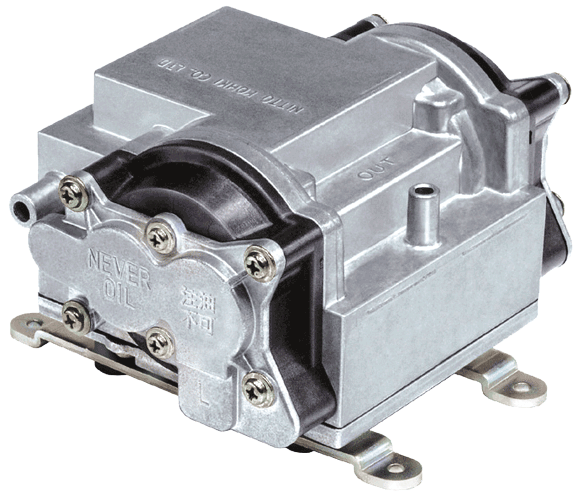

VC 0301B (Dual)

Download PDF

(234.05 KB)

Specifications

Attainable Vacuum:	-213 mbar
Rated Airflow:	25 l/min
Rated Voltage:	230 V 120 V
Maximum Pressure:	0.2 bar
Rated Pressure:	0.1 bar
Power Consumption:	27 W 27 W
Rated Frequency:	50 Hz 60 Hz
Life Expectancy:	10.000 h
Working Pressure Range:	-213 mbar to 0.2 bar
Outlet (Inlet):	8.5mm O.D. hose nipple (Outlet) 10.5mm O.D. hose nipple (Inlet)
Duty Cycle:	Continuous
Coil Insulation Class:	B for 230V or its equivalent (JETL) A for 120V or its equivalent (JETL)
Mounting Dimensions (L x W):	125 x 56 mm
Gross Weight:	1.7 kg
Leadwire Length:	300 mm

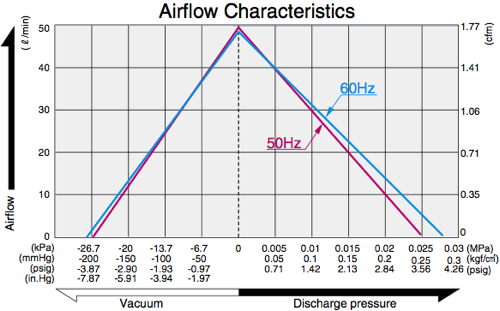

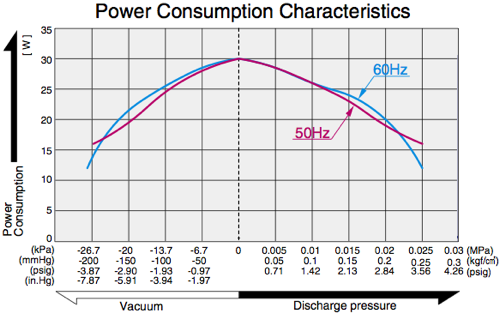

Airflow & Power Consumption
(click to enlarge)

Application Examples

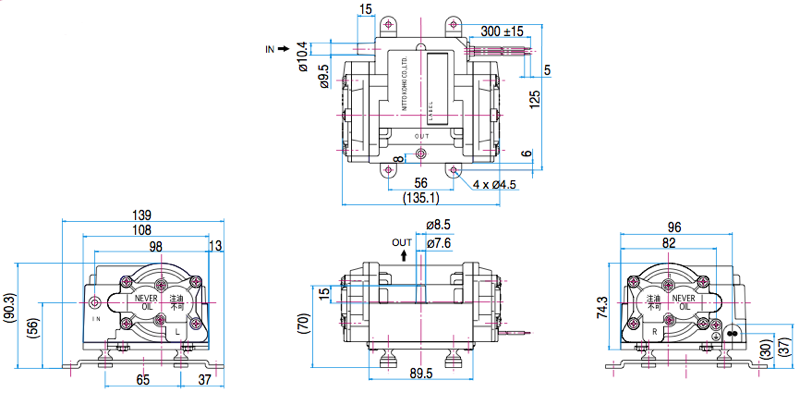

Sketch Drawing and Mounting Dimensions Diagram (mm)
