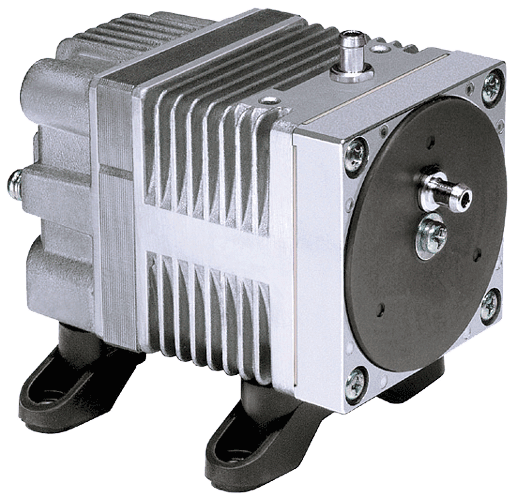

VP 0125

VP 0125


Click here to get your individual offer

Download PDF

(217.05 KB)

Specifications

Attainable Vacuum: -333 mbar
Free Air Displacement: 7 l/min
Rated Voltage: 230 V
120 V
Power Consumption: 14 W
14 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 10.000 h
Inlet: 6mm O.D. hose nipple
Outlet: 6mm O.D. hose nipple
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 48 x 62 mm
Gross Weight: 0.7 kg
Leadwire Length: 200 mm

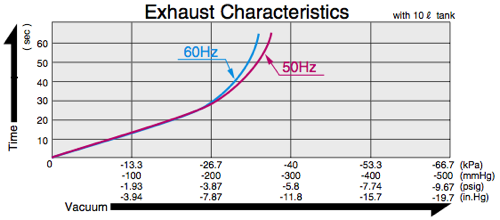

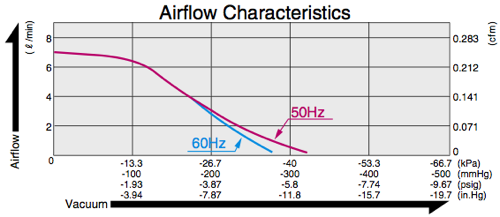

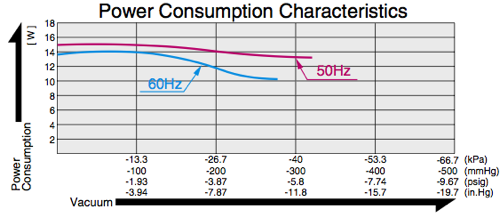

Airflow & Power Consumption
(click to enlarge)

VP 0125
VP 0125
VP 0125

Application Examples

Tape Positioning
Paper Card Dispenser

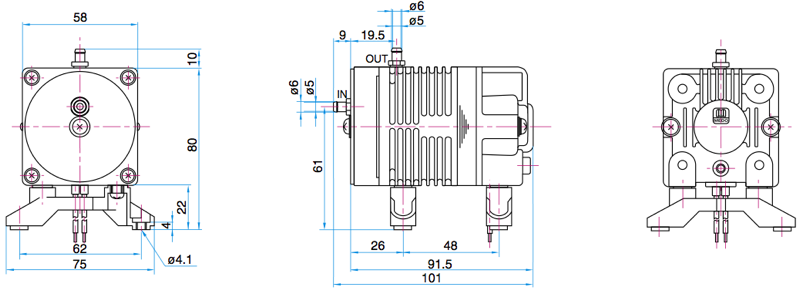

Sketch Drawing and Mounting Dimensions Diagram (mm)

VP 0125
