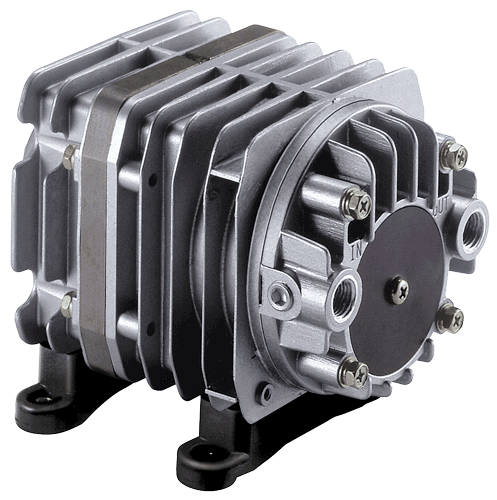

VP 0435A

Download PDF

Specifications

Attainable Vacuum: -467 mbar
Free Air Displacement: 25 l/min
Rated Voltage: 230 V
120 V
Power Consumption: 39 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 3.000 h
Inlet: ISO Rc 1/4 female threaded
Outlet: ISO Rc 1/4 female threaded
Duty Cycle: Continuous
Coil Insulation Class: B or its equivalent (JETL)/UL-1450
Mounting Dimensions (L x W): 68 x 84 mm
Gross Weight: 2.3 kg
Leadwire Length: 200 mm

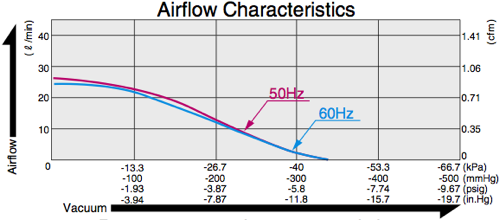

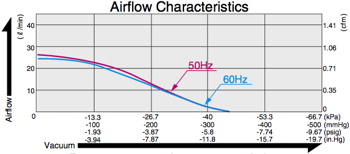

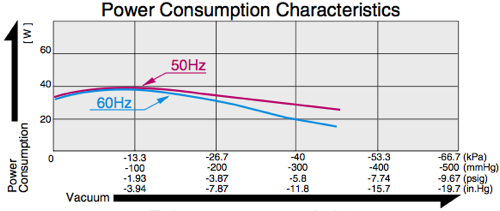

Airflow & Power Consumption
(click to enlarge)

Application Examples

Machine Screw Feeder
Medical Suction Cup

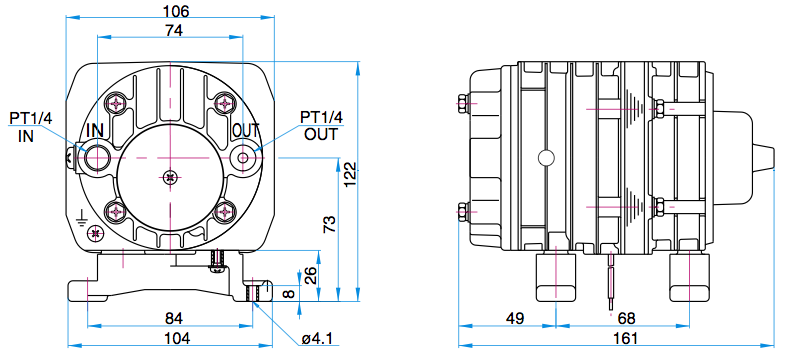

Sketch Drawing and Mounting Dimensions Diagram (mm)

VP 0435A
