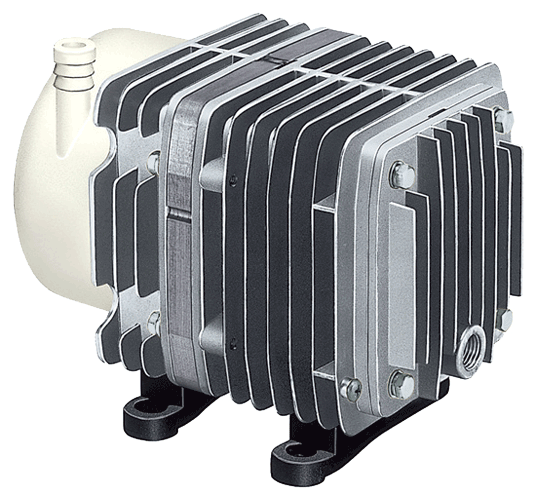

VP 0625

Download PDF

Specifications

Attainable Vacuum: -333 mbar
Free Air Displacement: 40 l/min
Rated Voltage: 230 V
120 V
Power Consumption: 60 W
56 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 10.000 h
Inlet: 15mm O.D. hose nipple
Outlet: ISO Rc 1/4 female threaded
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 68 x 84 mm
Gross Weight: 3.0 kg
Leadwire Length: 235 mm or 320 mm

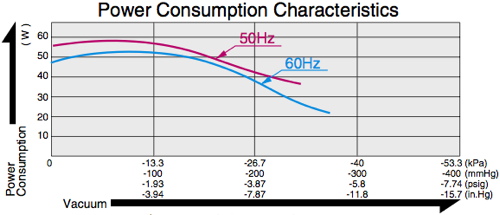

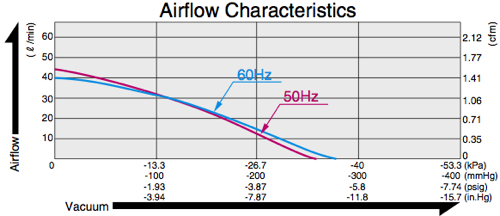

Airflow & Power Consumption
(click to enlarge)

Application Examples

Microfiche Camera
Solar Panels

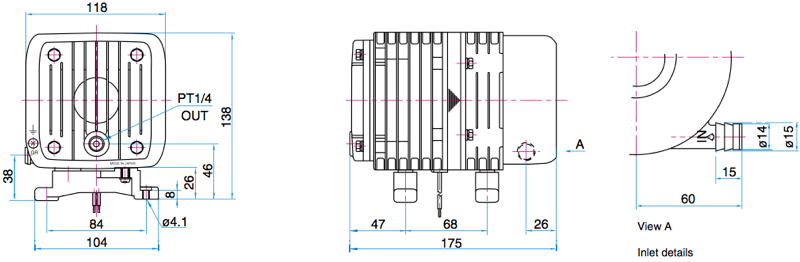

Sketch Drawing and Mounting Dimensions Diagram (mm)

VP 0625
