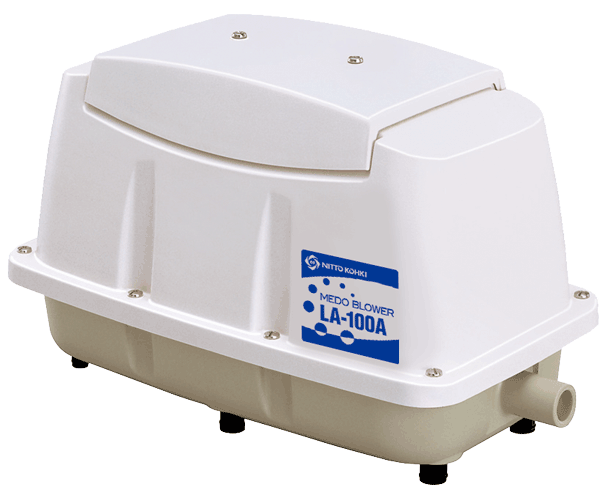

LA-100A

Download PDF

(749.36 KB)

Download Instruction Manual

(1.46 MB)

Specifications

Maintenance Video:

Power Supply: 230 V
120 V
Rated Frequency: 50 Hz
60 Hz
Rated Pressure: 0.18 bar
Operating Power Range: 0,05-0,3 bar
Airflow at Rated Pressure: 100 l/min
Power Consumption: 100 W
95 W
Weight: 9.4 kg

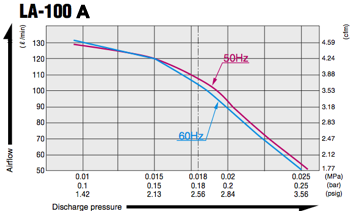

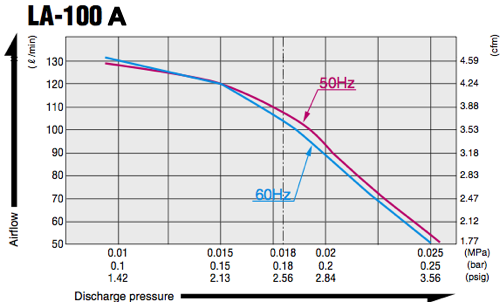

Airflow & Power Consumption
(click to enlarge)

Application Examples

Liquid Mixer Bubbling
Home Aerobic Sewage Treatment

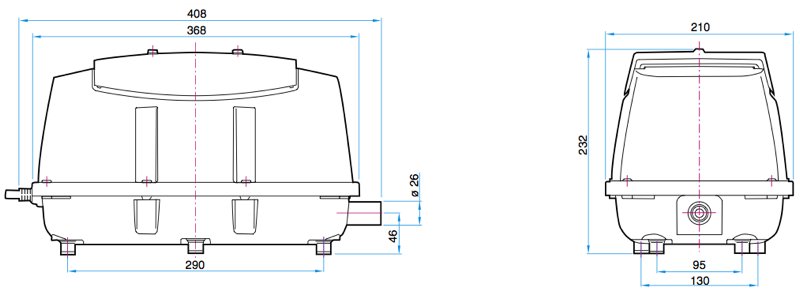

Sketch Drawing and Mounting Dimensions Diagram (mm)

LA-100A
