LA-80E

Download PDF

Download Instruction Manual

Specifications

Maintenance Video:

Power Supply: 230 V
Rated Frequency: 50 Hz
Rated Pressure: 0.15 bar
Operating Power Range: 0,1 - 0,2 bar
Airflow at Rated Pressure: 80 l/min
Power Consumption: 72 W
Weight: 5.3 kg

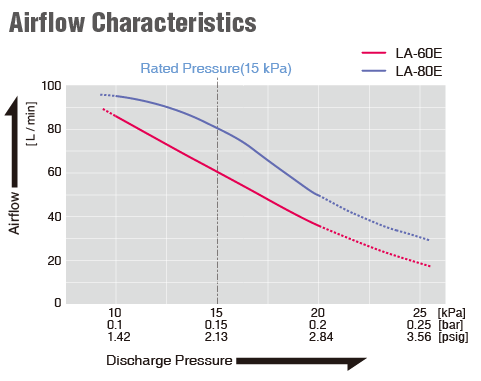

Airflow & Power Consumption
(click to enlarge)

Application Examples

Liquid Mixer Bubbling
Home Aerobic Sewage Treatment

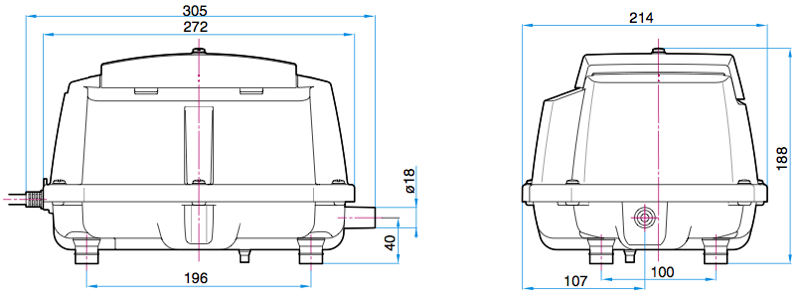

Sketch Drawing and Mounting Dimensions Diagram (mm)

LA-80E
