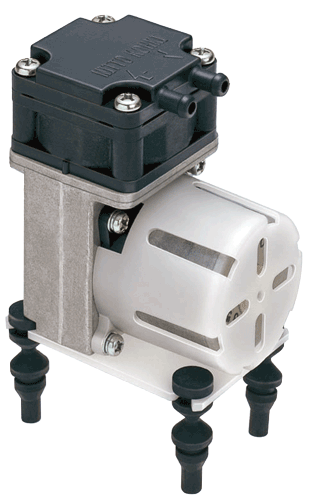

DP 0102

Download PDF

Specifications

Attainable Vacuum: -267 mbar
Free Air Displacement: 5 l/min
Maximum Pressure: 0.45 bar
Maximum Current: 0.7 A
Rated Voltage: 12 V
Duty Cycle: Continuous
Life Expectancy: 5.000 h
Inlet and Outlet: 6mm O.D. straight nipple
Coil Insulation Class: E or its equivalent (JETL)
Mounting Dimensions (L x W): 50 x 30 mm
Gross Weight: 0.25 kg

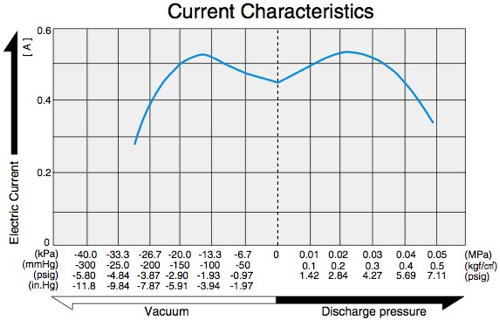

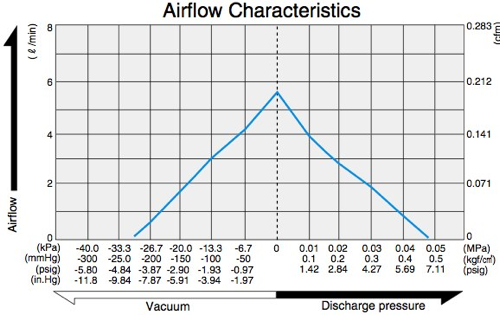

Airflow & Power Consumption
(click to enlarge)

Application Examples

Endoscopes
Vending Machines

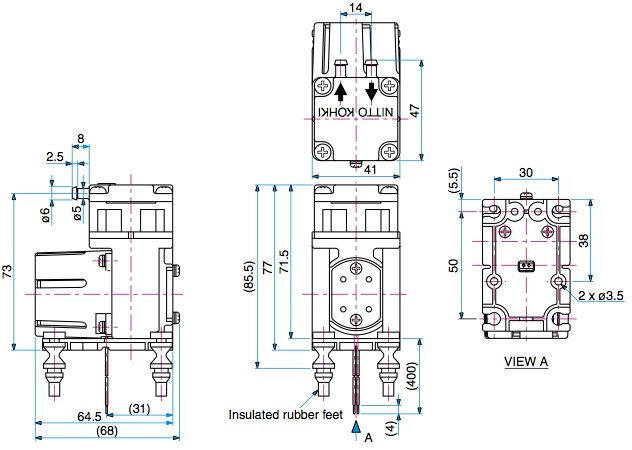

Sketch Drawing and Mounting Dimensions Diagram (mm)

DP 0102
