DP 0110PWM

Download PDF

Specifications

Attainable Vacuum: -666 mbar
Free Air Displacement: 7.5 l/min
Maximum Pressure: 1.5 bar
Maximum Current: 1.2 A
Rated Voltage: 12 V
Life Expectancy: 5.000 h
Inlet and Outlet: 6mm O.D.
Coil Insulation Class: A or its equivalent (JETL)
Mounting Dimensions (L x W): 30 x 50 mm
Gross Weight: 0.3 kg

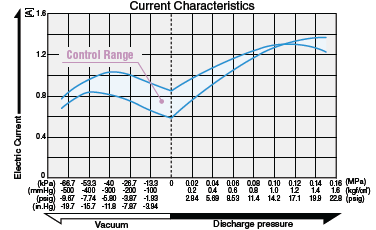

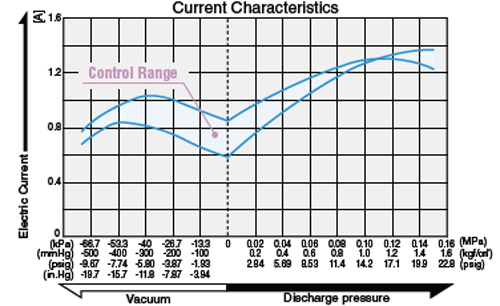

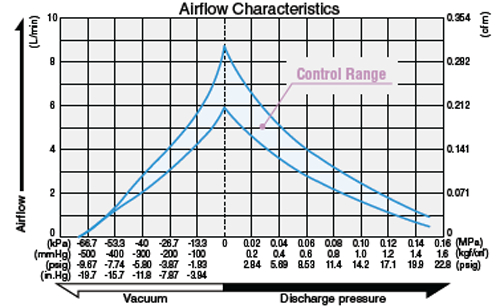

Airflow & Power Consumption
(click to enlarge)

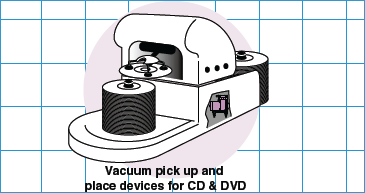

Application Examples

DP 0110PWM

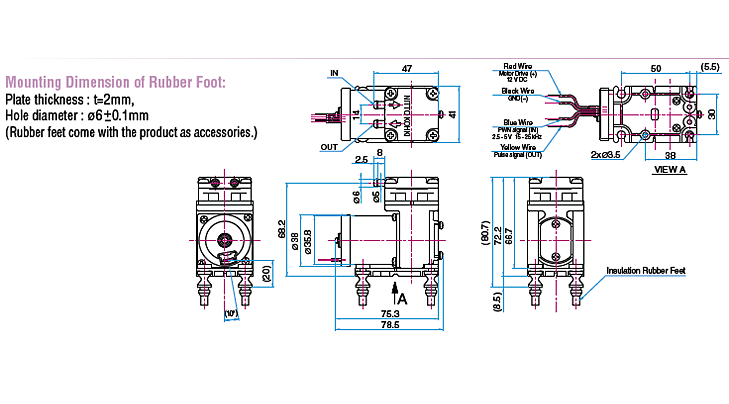

Sketch Drawing and Mounting Dimensions Diagram (mm)

DP 0110PWM
