DP 0125

Download PDF

(194.49 KB)

Specifications

Attainable Vacuum: -333 mbar
Free Air Displacement: 2.5 l/min
Maximum Pressure: 0.3 bar
Maximum Current: 0.5 A
Rated Voltage: 12 V
Duty Cycle: Continuous
Life Expectancy: 200 h
Inlet and Outlet: 3mm O.D. straight nipple
Coil Insulation Class: E or its equivalent (JETL)
Mounting Dimensions (L x W): 32 x 32.5 mm
Gross Weight: 0.08 kg

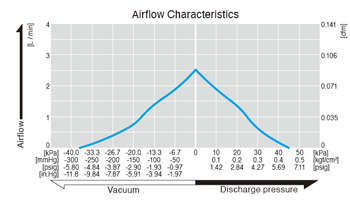

Airflow & Power Consumption
(click to enlarge)

Application Examples

Vacuum Tweezers
Blood Pressure Monitor

Sketch Drawing and Mounting Dimensions Diagram (mm)

DP 0125
