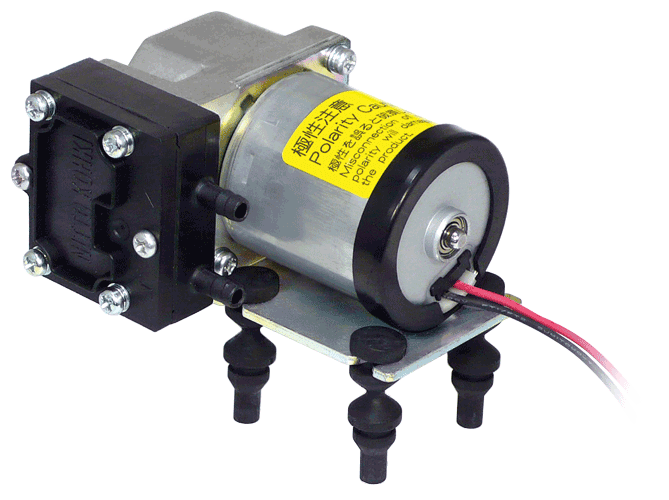

DPA 0105

Download PDF

Specifications

Attainable Vacuum: n/a
Free Air Displacement: 2.8 l/min
Rated Voltage: 12 V (X1)
24 V (Y1)
Maximum Pressure: 2.2 bar
Maximum Current: 1.2 A
0.6 A
Duty Cycle: Continuous
Life Expectancy: 5.000 h
Outlet (Inlet): 5mm O.D. straight nipple
Coil Insulation Class: E or its equivalent (JETL)
Mounting Dimensions (L x W): 32 x 27.5 mm
Gross Weight: 0.3 kg

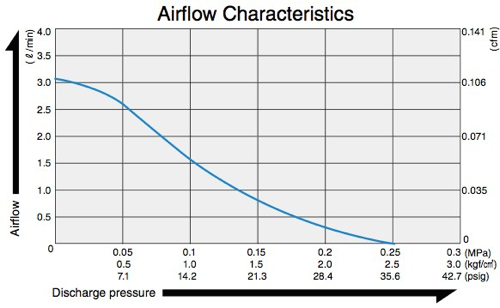

Airflow & Power Consumption
(click to enlarge)

12V / 24V

12V

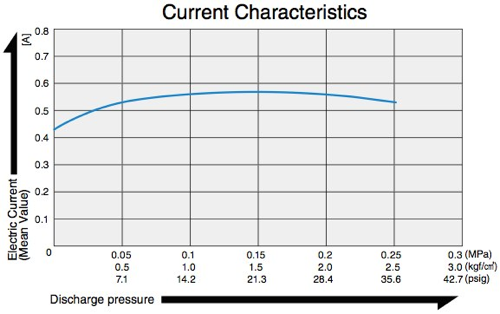

24V

Application Examples

Endoscopes
Vending Machines

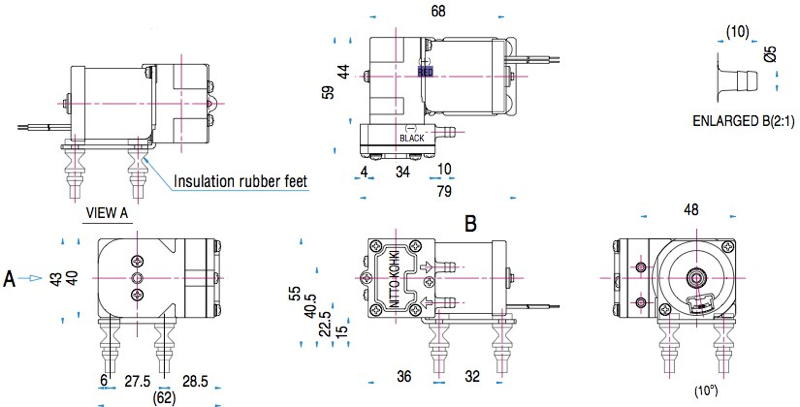

Sketch Drawing and Mounting Dimensions Diagram (mm)

DPA 0105
