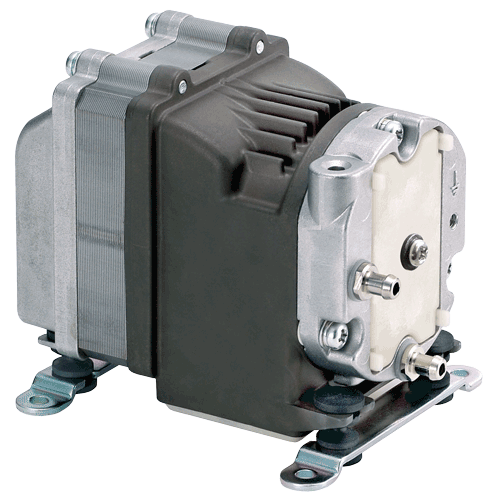

DVH 130

Download PDF

Specifications

Attainable Vacuum: -400 mbar
Free Air Displacement: 7 l/min
Rated Voltage: 12 V
24 V
Current (Mean Value): 0.86 A
0.41 A
Life Expectancy: 10.000 h
Outlet: 6 mm O.D. hose barb
Duty Cycle: Continuous
Coil Insulation Class: A or its equivalent (JETL)
Mounting Dimensions (L x W): 76 x 70 mm
Gross Weight: 0.91 kg
Leadwire Length: 300 mm

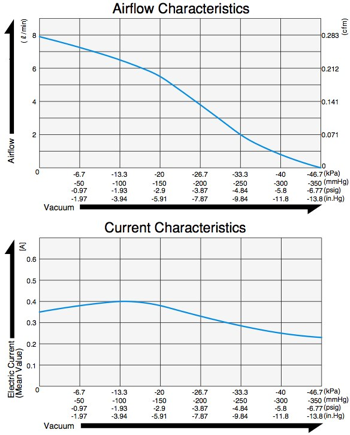

Airflow & Power Consumption
(click to enlarge)

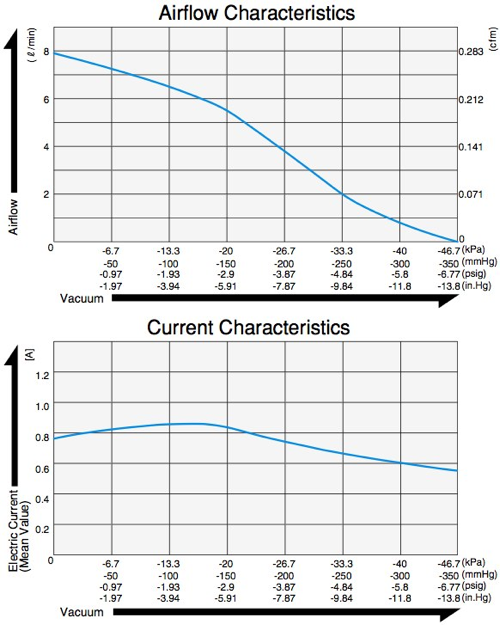

12V

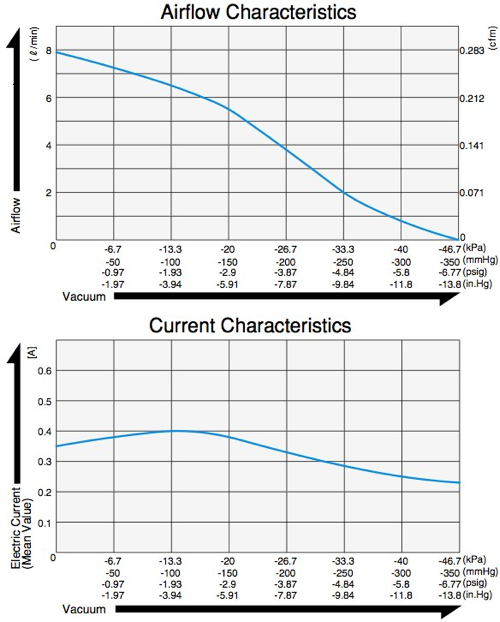

24V

Application Examples

Endoscope
Blood Pressure Tester

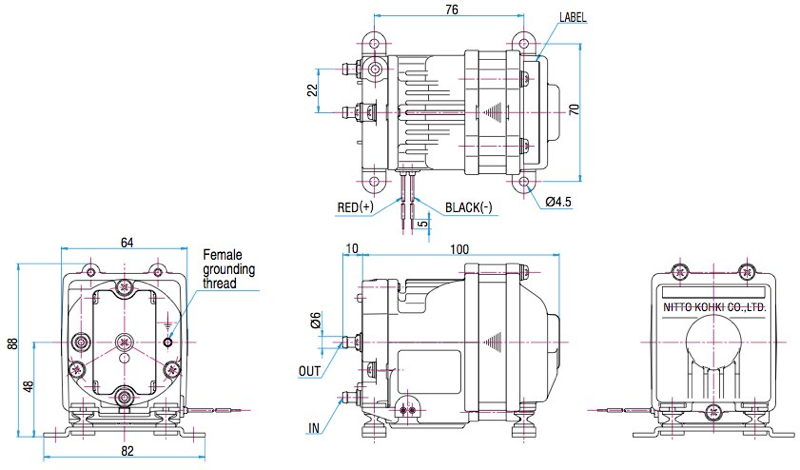

Sketch Drawing and Mounting Dimensions Diagram (mm)

DVH 130
