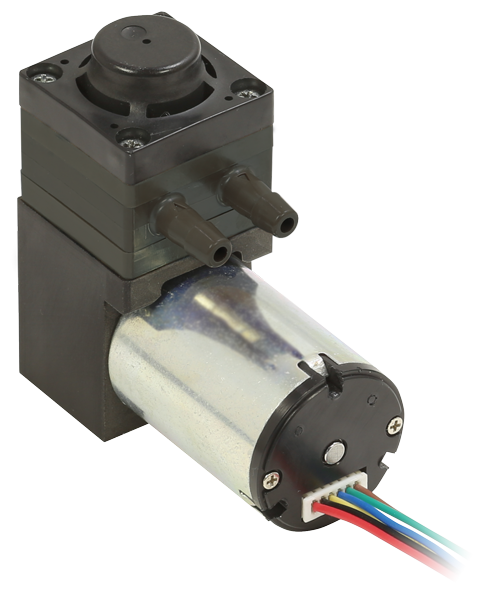

DPE-200BLC

Download PDF

(381.71 KB)

Ideal for transporting a small amount of chemical liquids precisely.
Built-in brushless DC motor with PWM control.

Specifications

Rated Voltage: 24 V
Flow Rate: 200 ml/min
Working Pressure Range: 0 ~ 1000 mbar
Outlet Pressure: 3 bar
Self-Priming Pressure: 200 mbar
Maximum Current: 140 mA
Rated Operating Time: Continous
Life Expectancy: 6.000 h
Inlet and Outlet: 4.7 mm O.D.
Insulation Classification: A or its equivalent (JETL)
Gross Weight: 80 g
Motor: DC Brushless Motor

Airflow & Power Consumption
(click to enlarge)

Sketch Drawing and Mounting Dimensions Diagram (mm)

DPE-200BLC
