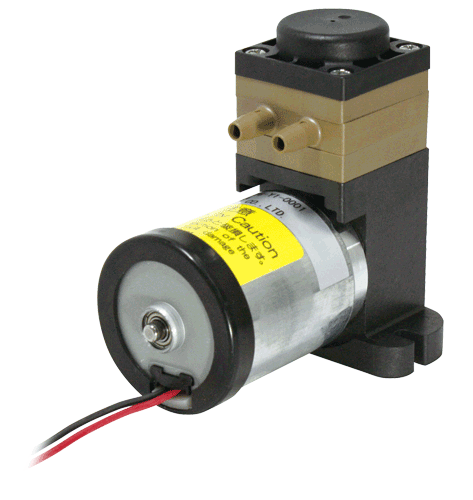

DPE-400BL

Download PDF

(166.31 KB)

Specifications

Rated Voltage: 24 V
Flow Rate: 400 ml/min
Working Pressure Range: 0 ~ 1000 mbar
Outlet Pressure: 3 bar
Self-Priming Pressure: 400 mbar
Maximum Current: 450 mA
Rated Operating Time: Continous
Life Expectancy: 5.000 h
Inlet and Outlet: 5.4 mm O.D.
Insulation Classification: A or its equivalent (JETL)
Gross Weight: 230 g
Motor: DC Brushless Motor

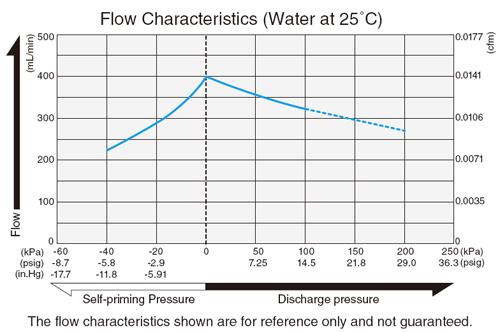

Airflow & Power Consumption
(click to enlarge)

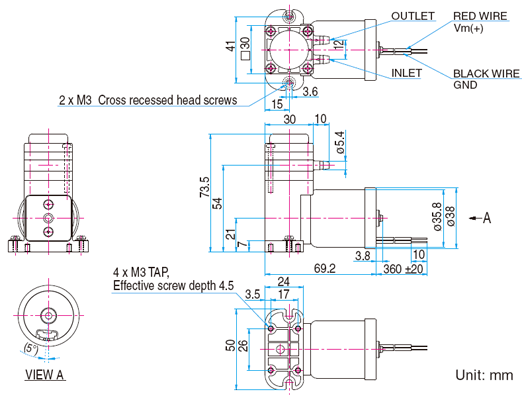

Sketch Drawing and Mounting Dimensions Diagram (mm)

DPE-400BL
