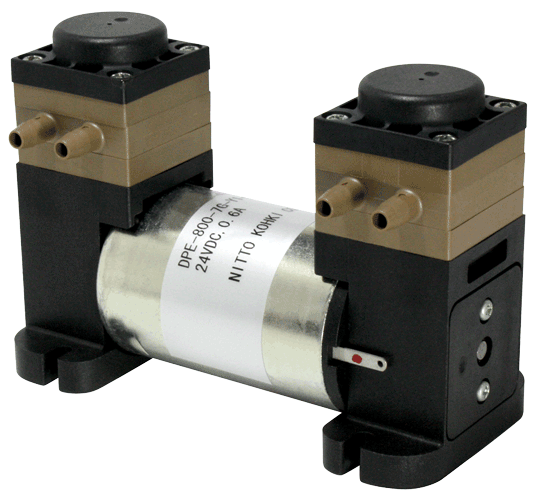

DPE-800

Download PDF

Specifications

Rated Voltage: 24 V
Flow Rate: 800 ml/min
Working Pressure Range: 0 ~ 1000 mbar
Outlet Pressure: 3 bar
Self-Priming Pressure: 400 mbar
Maximum Current: 600 mA
Rated Operating Time: Continuous
Life Expectancy: 600 h
Inlet and Outlet: 5.4 mm O.D. straight nipple
Insulation Classification: E or its equivalent (JETL)
Gross Weight: 350 g
Motor: DC Brush Motor

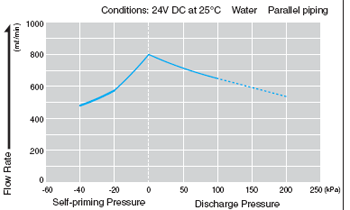

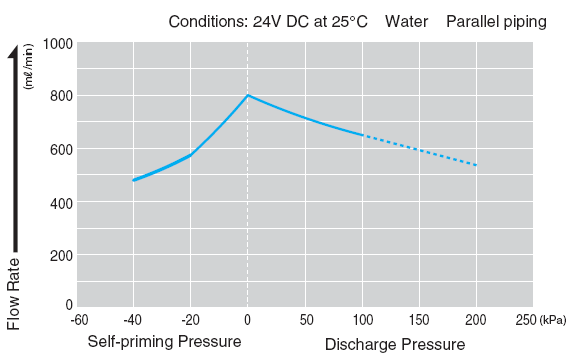

Airflow & Power Consumption
(click to enlarge)

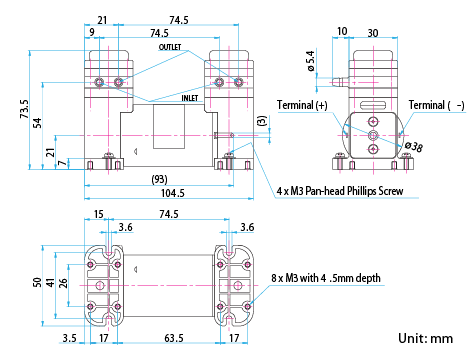

Sketch Drawing and Mounting Dimensions Diagram (mm)

DPE-800
