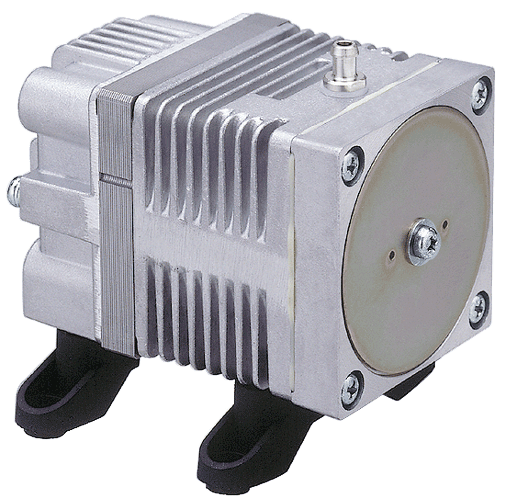

AC 0105

Download PDF

Specifications

Rated Pressure: 0.5 bar
Rated Airflow: 2.5 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 0.8 bar
Power Consumption: 14 W
14 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 5.000 h
Outlet: 6mm O.D. hose nipple
Duty Cycle: 60 minutes
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 48 x 62 mm
Gross Weight: 0.7 kg
Leadwire Length: 200 mm

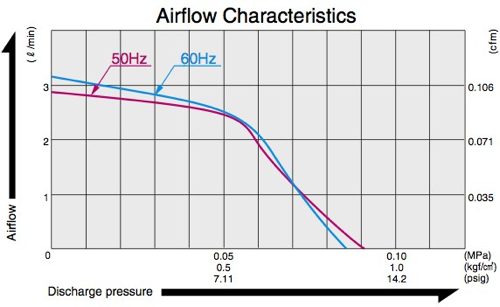

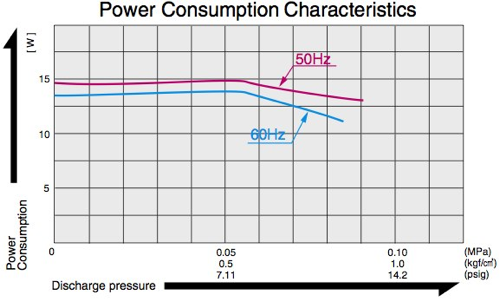

Airflow & Power Consumption
(click to enlarge)

Application Examples

Saline Water Splasher
Copy Paper Separator

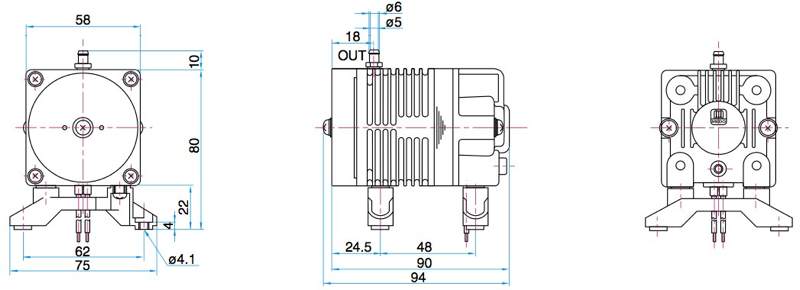

Sketch Drawing and Mounting Dimensions Diagram (mm)

AC 0105
