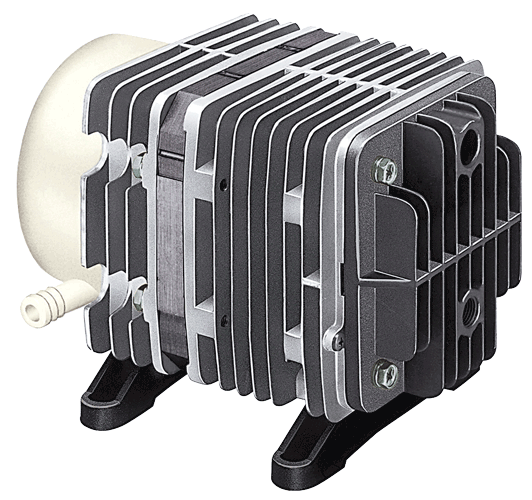

AC 0910

Download PDF

Specifications

Rated Pressure: 1.0 bar
Rated Airflow: 16 l/min
Rated Voltage: 230 V
120 V
Maximum Pressure: 1.5 bar
Power Consumption: 90 W
85 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 3.000 h
Outlet: ISO Rc 1/4 female threaded
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 102 x 130 mm
Gross Weight: 4.9 kg
Leadwire Length: 150 mm or 320 mm

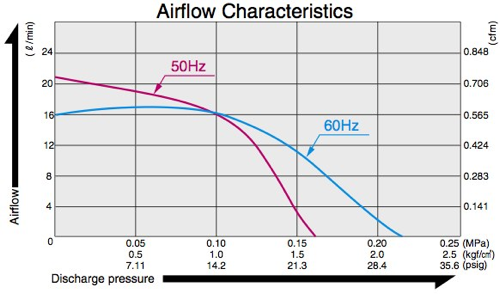

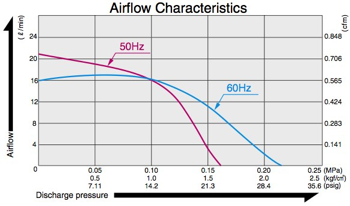

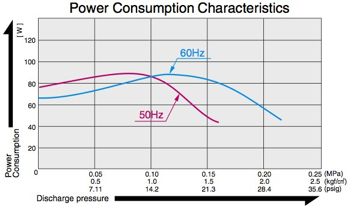

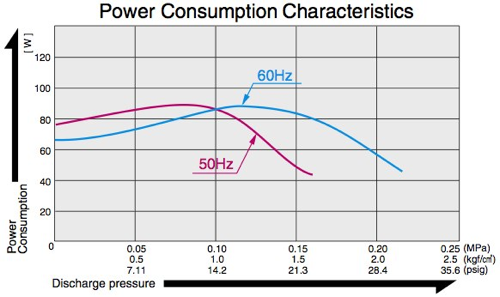

Airflow & Power Consumption
(click to enlarge)

Application Examples

Oxygen Concentrator
I.V. Balloon Pump

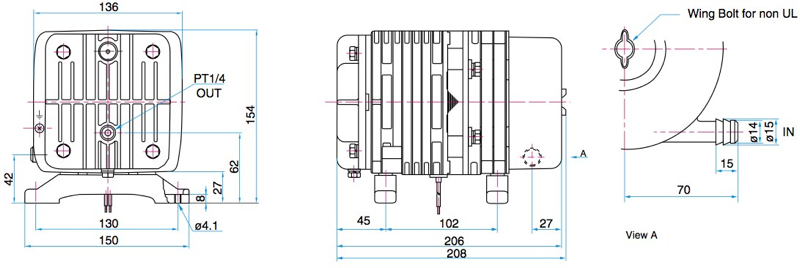

Sketch Drawing and Mounting Dimensions Diagram (mm)

AC 0910
