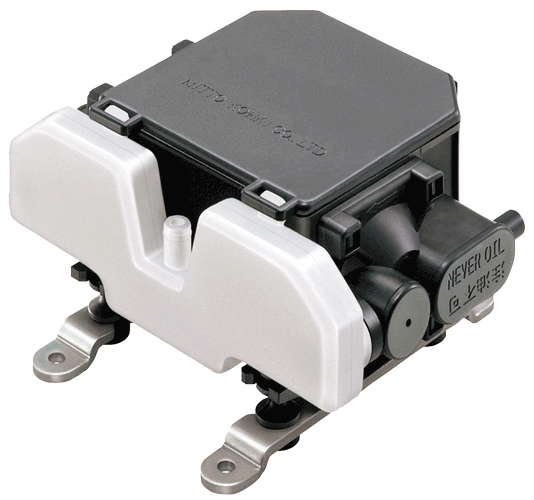

VC 0101S (Blower)

Download PDF

(202.27 KB)

Specifications

Attainable Vacuum:	n/a
Rated Airflow:	15 l/min
Rated Voltage:	230 V 120 V
Maximum Pressure:	0.26 bar
Rated Pressure:	0.05 bar
Power Consumption:	14 W 14 W
Rated Frequency:	50 Hz 60 Hz
Life Expectancy:	5.000 h
Working Pressure Range:	0 to 0.26 bar
Outlet (Inlet):	7.5mm O.D. hose nipple
Duty Cycle:	60 minutes
Coil Insulation Class:	B or its equivalent (JETL)
Mounting Dimensions (L x W):	66 x 100 mm
Gross Weight:	0.83 kg
Leadwire Length:	300 mm

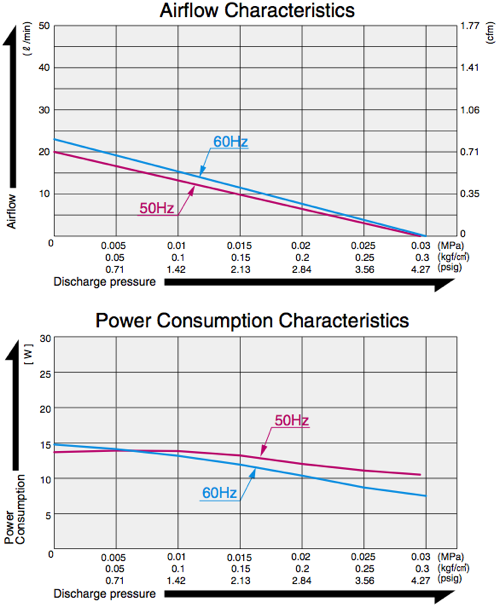

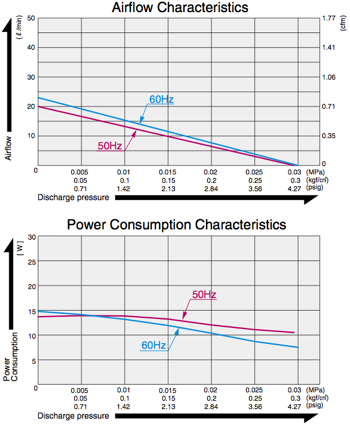

Airflow & Power Consumption
(click to enlarge)

Application Examples

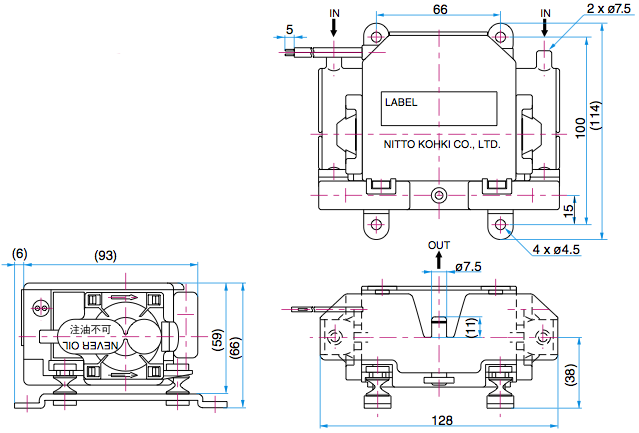

Sketch Drawing and Mounting Dimensions Diagram (mm)
