DAH 110

Download PDF

Specifications

Rated Pressure: 1.0 bar
Rated Airflow: 1.0 l/min
Rated Voltage: 12 V
24 V
Maximum Pressure: 1.2 bar
Current (Mean Value): 0.74 A
0.27 A
Live Expectancy: 5.000 h
Outlet: 4,5 mm O.D. hose barb
Duty Cycle: Continuous
Coil Insulation Class: A or its equivalent (JETL)
Mounting Dimensions (L x W): 76 x 70 mm
Weight: 0.91 kg
Leadwire Length: 300 mm

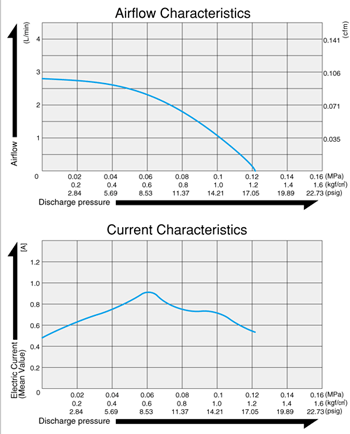

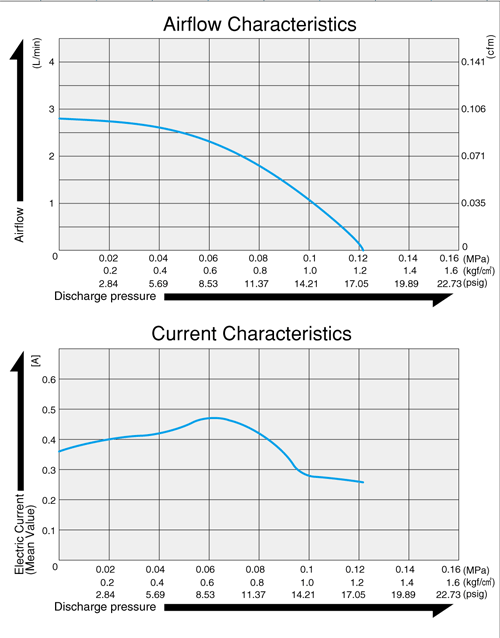

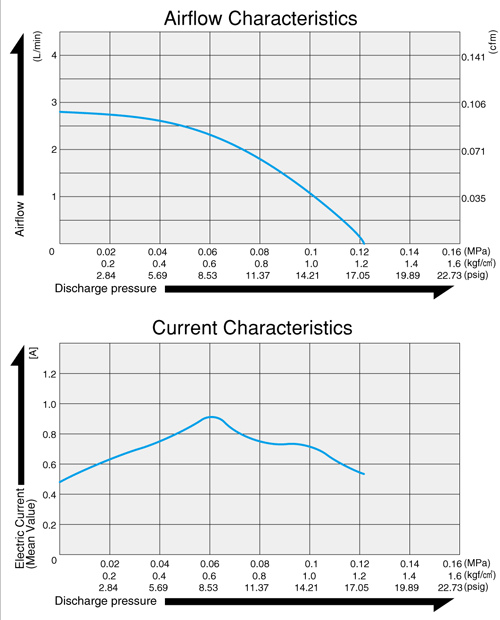

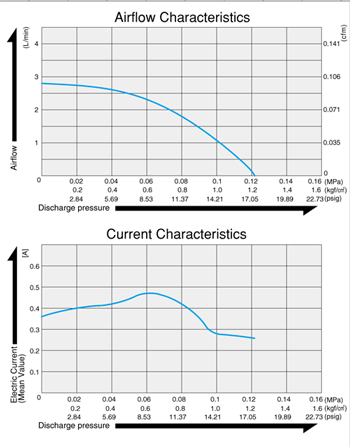

Airflow & Power Consumption
(click to enlarge)

12V

24V

Application Examples

Medical equipment
Analysers etc.

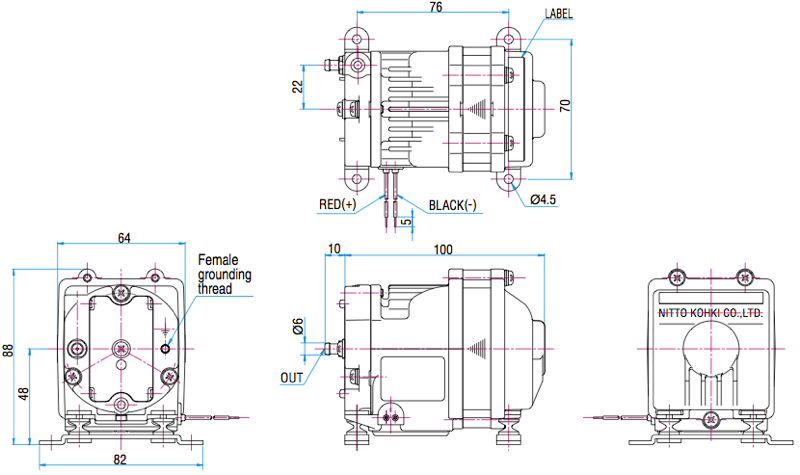

Sketch Drawing and Mounting Dimensions Diagram (mm)

DAH 110
