DP 0210TA PWM

Download PDF

Specifications

Attainable Vacuum: -606 mbar
Free Air Displacement: 10 l/min
Maximum Pressure: 1.5 bar
Maximum Current: 0.8 A
Rated Voltage: 24 V
Life Expectancy: 5.000 h
Inlet and Outlet: 6.8 mm O.D.
Coil Insulation Class: B or its equivalent (JETL)
Mounting Dimensions (L x W): 36.5 x 37.5 mm
Gross Weight: 0.32 kg

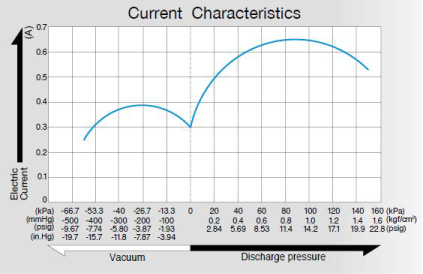

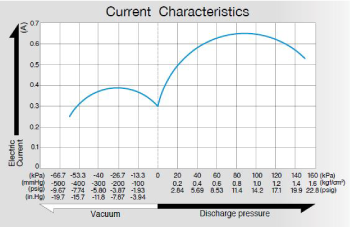

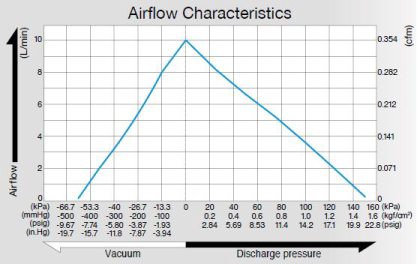

Airflow & Power Consumption
(click to enlarge)

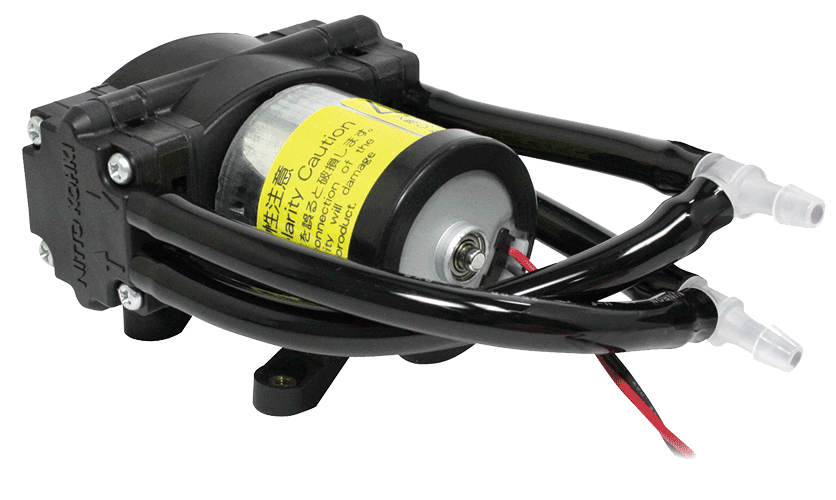

Application Examples

DP 0210TA PWM

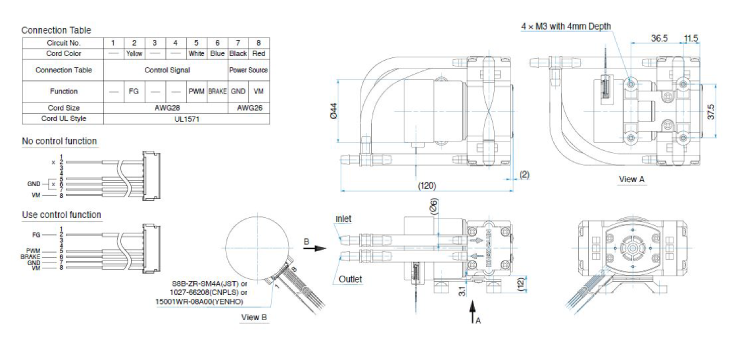

Sketch Drawing and Mounting Dimensions Diagram (mm)

DP 0210TA PWM
