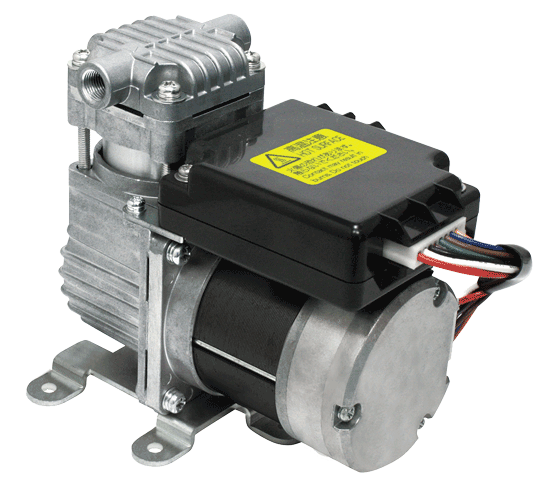

DP 0410

Download PDF

Specifications

Attainable Vacuum: -773 mbar
Free Air Displacement: 18 l/min
Rated Voltage: 12 V
24 V
Maximum Pressure: 1.8 bar
Maximum Current: 2,5-5.0 A
1,5-2,7 A
Duty Cycle: Continuous
Life Expectancy: 10.000 h
Outlet (Inlet): Rc 1/8
Coil Insulation Class: E type equivalent
Mounting Dimensions (L x W): 70 x 45mm
Gross Weight: 1,1 kg

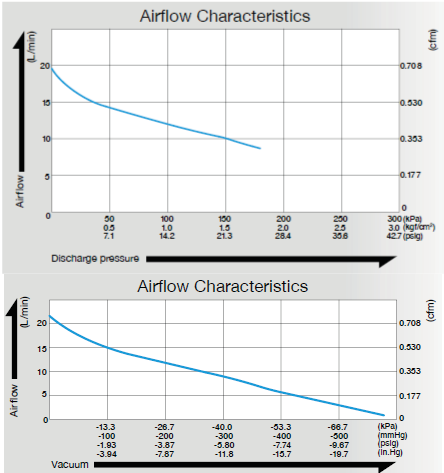

Airflow & Power Consumption
(click to enlarge)

12V / 24V

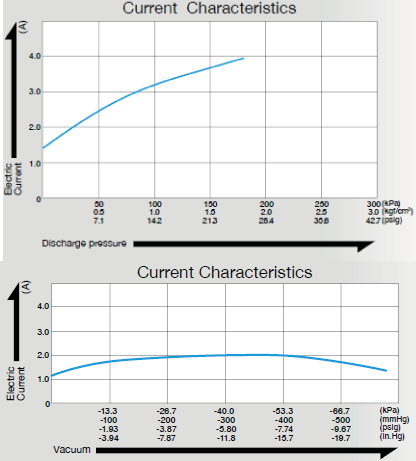

12V

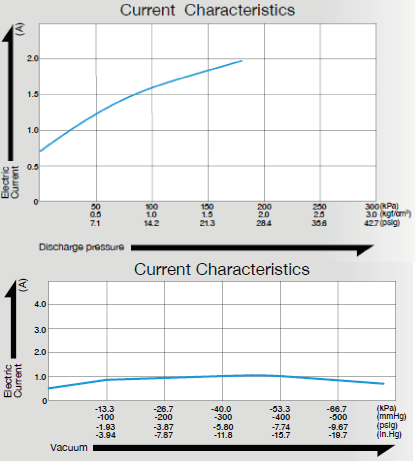

24V

Application Examples

Endoscopes

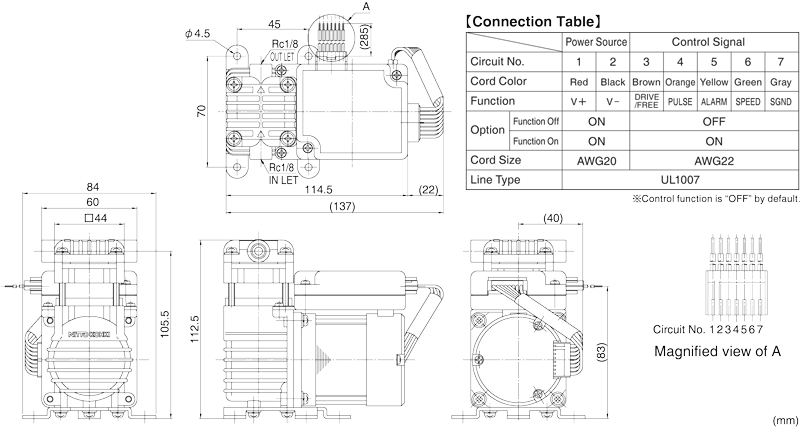

Sketch Drawing and Mounting Dimensions Diagram (mm)

DP 0410
